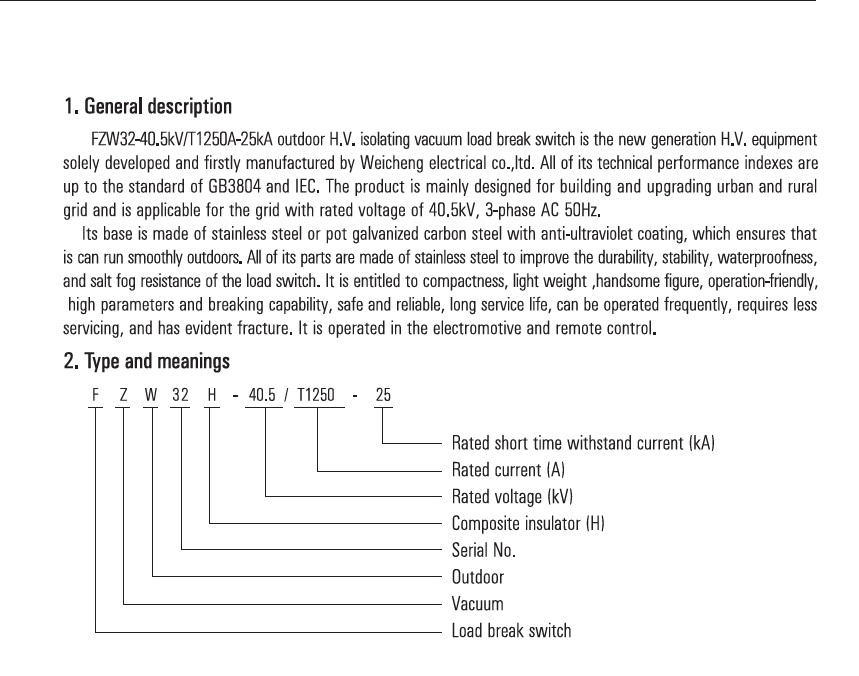

FZW32-40.5outdoor AC high voltage vacuum load-breaking switch is a new type of load switch designed manufactured via integrating the mature experience of domestic existing load switch production and foreign advanced technology.
- Structure: ACB
- Poles Number: 3
- Certification: ISO9001-2000
- Operation: Energy-storage Type
- Installation: Fixed
- Arc-extinguishing Medium: Vacuum
The mechanism of FZW32-40.5is designed as a whole with vacuum interrupter. Specialized 3AF type spring operating structure from Siemens can be operated by manual or carry out direct current energy saving operation. It's can be designed as 350mm, 400mm, 460mm and other kinds of phase space, which matches better with different kinds of switchgear, such as fixed type XGN17-40.5, type JYN1-40.5, KYN10-40.5.
Working conditions:
- Ambient temperature: Max +40° C min -30° C,
- Altitude: ≤ 1000m,
- Relative humidity: Daily average relative humidity: ≤ 95%; Monthly average relative humidity≤ 90%, daily average saturated vapor pressure ≤ 2.2*10-3 MPa, monthly average value ≤ 1.8*10-3 MPa
- Earthquake intensity: ≤ 8 degree
- The installation should be free from fire, explosion, severe vibration, chemical corrosion and serious pollution

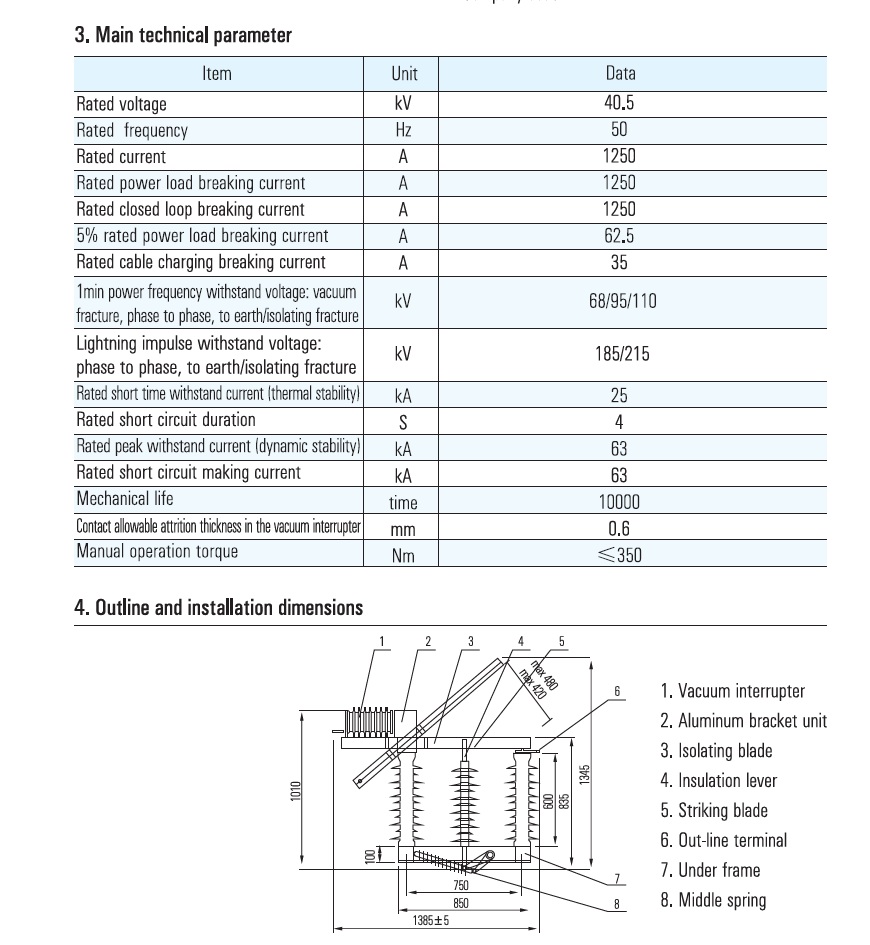

Main Technical Data:
- Rated voltage, kv 40.5
- Rated lighting impulse withstand voltage(peak), kv 185
- Rated short-time power frequency withstand voltage(1min,) kv 95
- Rated short-circuit breaking current kA 25 31.5
- Rated current A 1250/1600 1250/1600/2000
- Rated peak withstanding current, kA 63 80
- Rated operations of short-circuit breaking current interruption, times 20
- Rated duration of short-circuit, s 4
- Rated operating sequence 0-0.3-CO-180s -CO
- Supply voltage of open and close installation V AC, DC220 AC, DC110
- Closing time, ms 50~100
- Opening time, ms 30~60
- Rated single capacitor bank breaking current, A 630
- Rated back to back capacitor bank breaking current, A 400
- Mechanical life times, (M1 degree)10000
- Rated contact stroke, mm 22± 2
- Contact over travel, mm 8± 2
- Average opening speed, m/s 1.8± 0.2
- Average closing speed, m/s 0.65± 0.2
- Contact bouncing duration at closing operation, ms ≤ 3
- Three-pole simultaneity, ms ≤ 2
- Conductive circuit resistance of each phases, μΩ ≤ 45
Note: Rated characteristics can be given on requirement.
